JBD Smart BMS 3S 4S 250A 300A with UART board for lifepo4 battery & li-ion

$145.08 USD
$66.56 USD $145.08 USD
Sale Sold out
Shipping calculated at checkout.
Specification
Functions

SMART BMS MODEL: SP04S060

This is Jiabaida/JBD offical store on Shopify.

We have smart and hardware bms that for lifepo4 and li-ion lithium battery and support to be customized. Please contact us if need more support and cooperation.

Quick Details

INTRODUCTION
JBD-SP04S060 smart BMS is a software protection board scheme specially designed for 4 strings of lithium battery packs. This smart bms supports a continuous current of up to 300A. The product adopts architecture of front-end acquisition chip by TI and MCU by HUADA, and some parameters can be flexibly adjusted through the host computer according to customer needs.
PARAMETERS
Model No. : SP04S060 Type: BMS PCBA
Place of Origin:  China Brand Name:  JBD jiabaida
Interface type: Charge and discharge are both at the same port Circuit Resistance: ≤10mR
Product Size:  230*110*20mm Customized:  Supported
String:  3~4S Shipping Time: 7-20 working day
Testing Service: 100% Testing Usage: Li Ion Lipo B-Pack
With Uart: Yes Optional Functions: RS485, Heating
Voltage: 12V Application:  Electronic Products

Packaging & Delivery

Selling Units： Single Item
Single Package Size: 23*13*16cm
Single Gross Weight: 1.500 kg
Package Type: Manufactuers will upgrade the packaging sometimes,please refer to the actual object received.
Package Content : 1* BMS *Balance wires* Bluetooth Module
Reminder: UART/RS485 communication box should be purchased separately

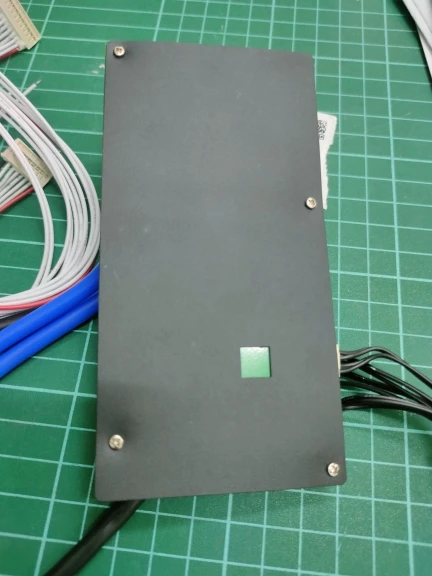

Product Picture:
