JBD Smart BMS 8S 15S 16S 100A 50A~100A Communicant PCB with UART/RS485/CAN Function for Inverters Parallel Connect Support Same Port Unique SOC Display with Pre-discharge Heat and Buzzar Functions

Name: JBD Smart BMS 8S 15S 16S 100A 50A~100A Communicant PCB with UART/RS485/CAN Function for Inverters Parallel Connect Support Same Port Unique SOC Display with Pre-discharge Heat and Buzzar Functions
Brand: Jiabaida BMS
SKU: JBD-UP16S010-L16S-100A-100A-B-U-R-C-R2 V1.2
Price: 127 USD
Availability: InStock
Rating: 5.0 (2 reviews)

$127.26 USD

Sale Sold out

Shipping calculated at checkout.

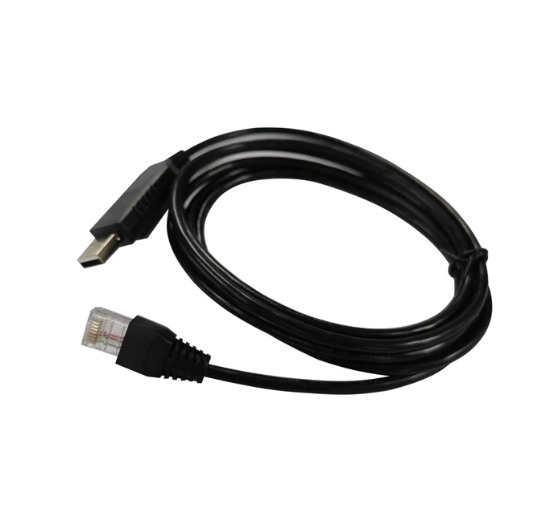

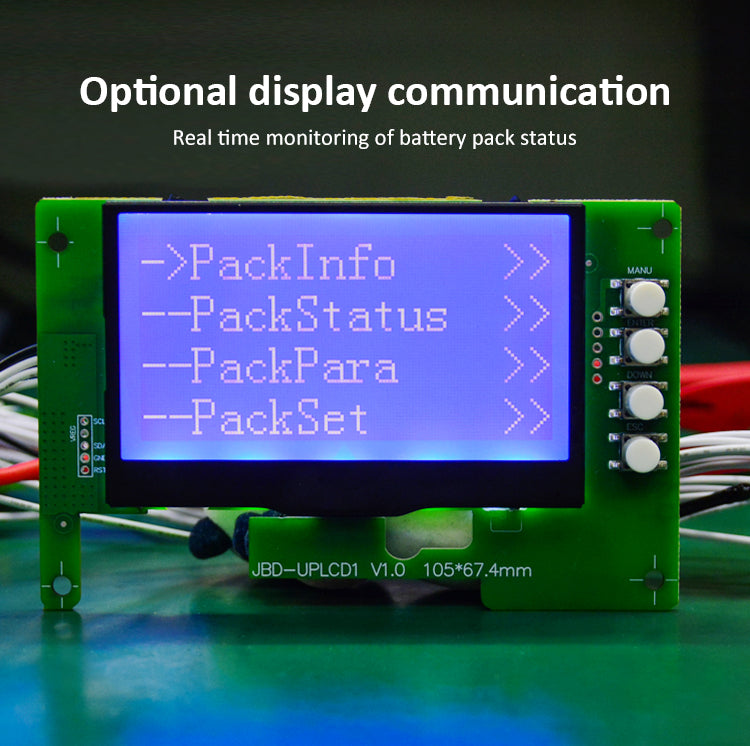

Specification 16S 48V 100A Balance+UART+RS485+CAN 16S 48V 150A Blance+UART+RS485+CAN 16S 48V 200A Balance+UART+RS485+CAN 8S 24V 100A Balance+UART+RS485+CAN 8S 24V 150A Balance+UART+RS485+CAN LCD For UP RS485 RJ45 Communication Wire

Product variants

Quantity

SMART BMS MODEL: JBD-UP16S010

This is Jiabaida/JBD offical store on Shopify.

We have smart and hardware bms for lifepo4 and li-ion lithium battery and support to be customized. Please contact us if need more support and cooperation.

QUICK DETAILS

INTRODUCTION

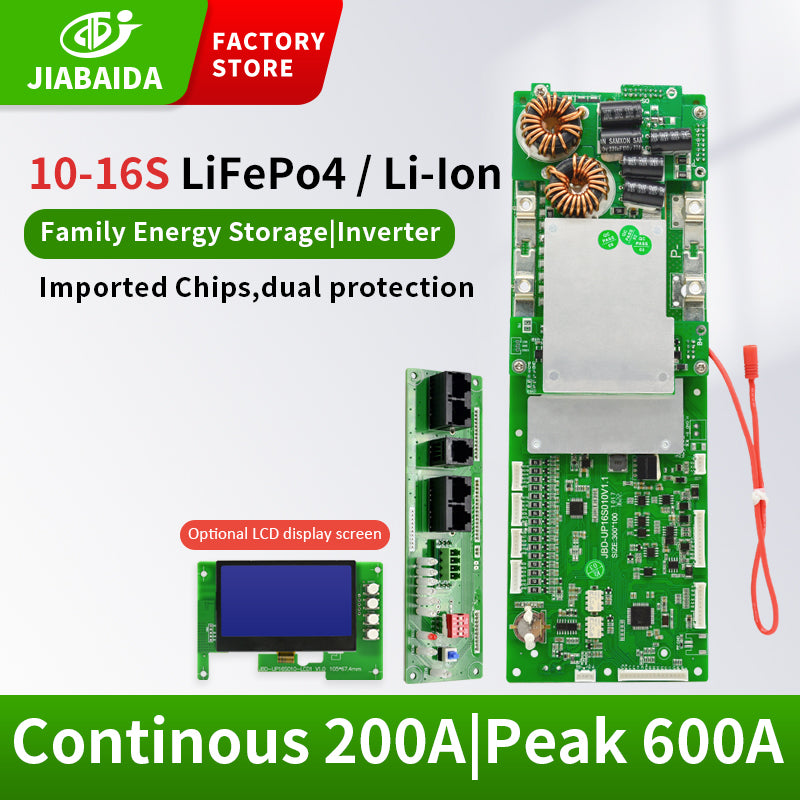

JBD-UP16S010 is a software protection board scheme specially designed for 10~16 strings of lithium battery packs. The product adopts architecture of front-end acquisition chip + MCU, and some parameters can be flexibly adjusted through the host computer according to customer needs.

PARAMETERS

Cell specifications	8~16 strings of Lithium Iron Battery
Interface type	Charge and discharge are both at the same port
Charging voltage	3.6V*Number of strings
Cell voltage	2.7~3.65V
Continuous charging current	100A 150A 200A
Continuous discharging current)	100A 150A 200A
Consumption of running	≤40mA
Consumption of sleep	≤0.4mA
Sleep conditions	Delay 65000s under no current \ communication \ protection state (settable)
Circuit resistance)	≤10mR
Operating temperature	-30℃~75℃
Size	300±0.5mm * 100±0.5mm * 35±2mm

Supplementary note:

Continuous standing for 65000s (settable) will automatically disconnect therelay and reduce the standby power consumption of BMS. A large charge discharge current will be identified through the pre charge discharge circuit, and then close the relay.

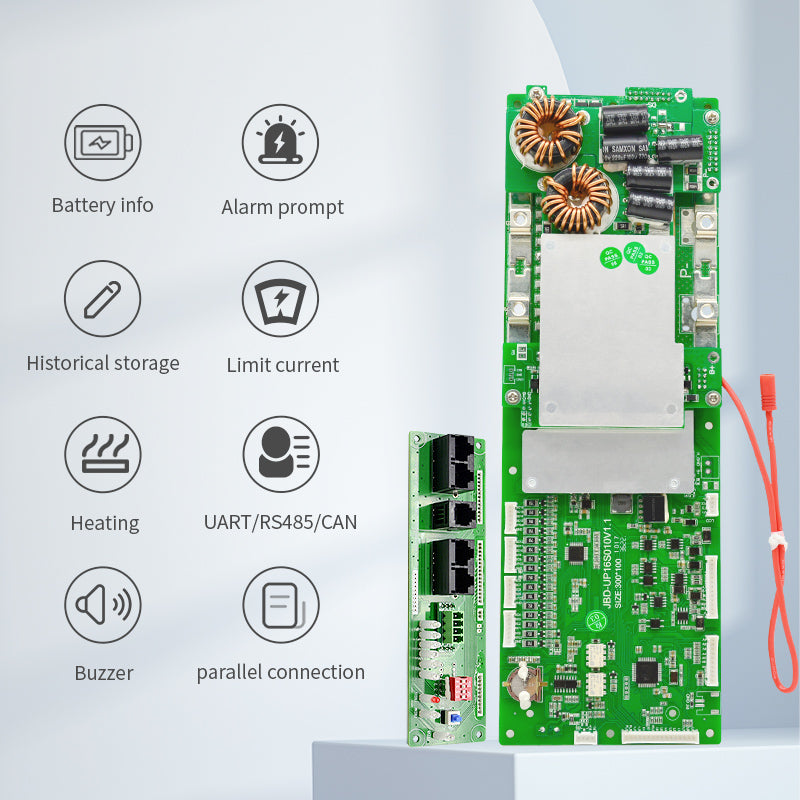

FUNCTIONS

1. Overcharge protection and recovery
2. Over-discharge protection and recovery
3. Charging overcurrent protection and recovery
4. Discharge overcurrent protection and recovery
5. Temperature Protection and Recovery
6. Balance function
7. Capacity calculation
8. Sleep function

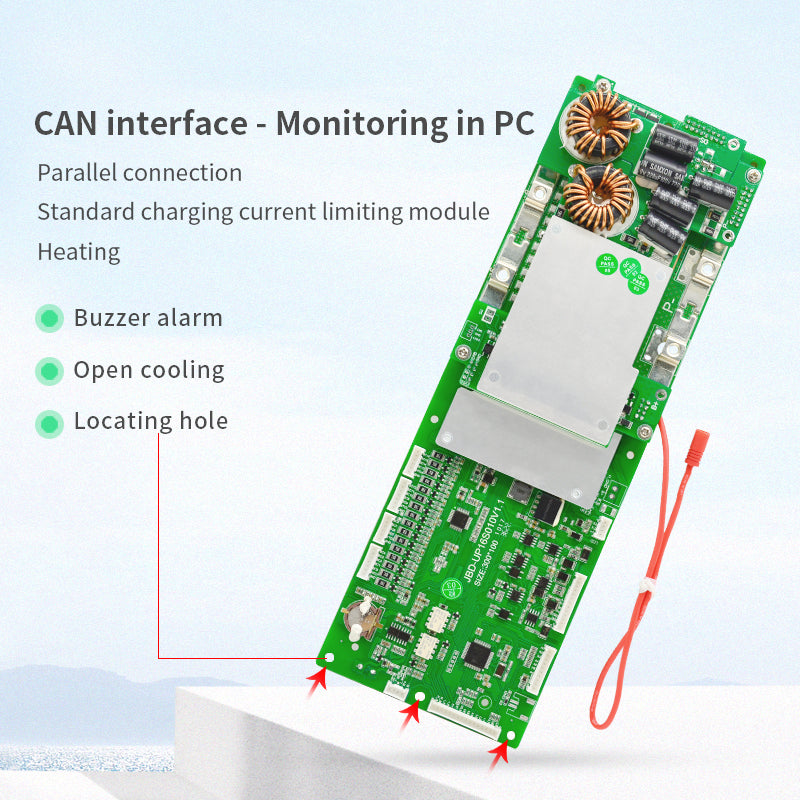

9. Communication
