Jiabaida BMS
JBD Smart bms 3S 4S 20A 30A 50A 80A Lithium& Lion Battery PCB with Balace & Uart BT RS485 CAN external Bluetooth
Regular price
$56.70 USD
Regular price
Sale price
$56.70 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

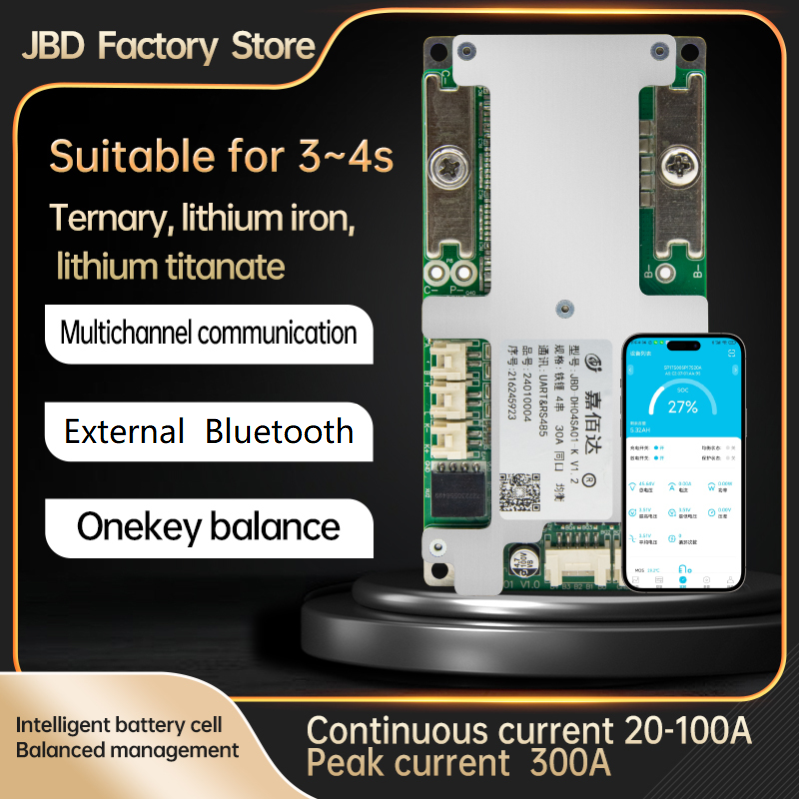

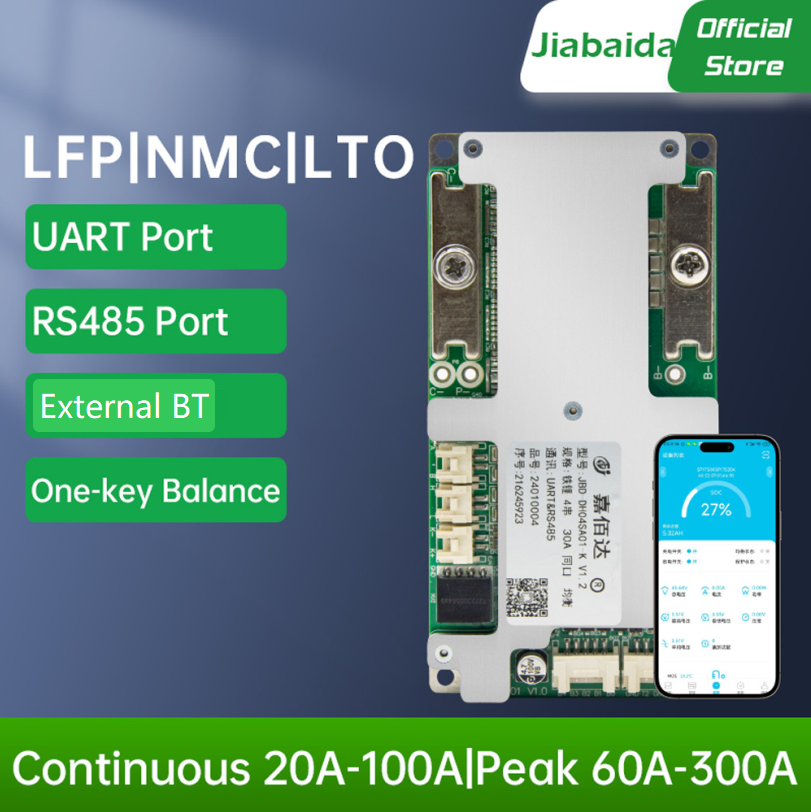

DH04SA01 Smart bms
Quick Details:
- Model Number: DH04SA01
- Type: bms pcba
- Place of Origin: China
- Brand Name: JBD
- Product Name: Lifepo4 BMS 4S
- Product Size: 122*62*14MM
- Service: ODM.OEM
- String: 3~4S
- Charge Protection: Yes
- Discharge Protection: Yes
- With Uart: Yes
- Application: Electronic Products
- RS485 Function: Yes
-
Packaging & Delivery
- Selling Units: Single item
- Single package size: 23X13X16 cm
- Single gross weight: 1.000 kg
- Package Type: Manufactuers will upgrade the packaging sometimes,please refer to the actual object received.
- Package Content : 1* BMS *Balance wires* Bluetooth Module
- Note: UART/RS485 communication box should be purchased seperately
JBD-DH04SA01
JBD-DH04SA01 is a software protection board scheme specially designed for 3~4 strings of lithium battery packs. The product adopts architecture of front-end acquisition chip by DEVE and MCU by HDSC, and some parameters can be flexibly adjusted through the host computer according to customer needs. It is suitable for lithium batteries with different chemical properties, such as lithium ion, lithium iron phosphate, etc. The protection board has strong load carrying capacity and the maximum continuous discharge current can reach 80A.
1. 3-4 cell series protection2.Various protection functions for charging and discharging3.Discharge over current, short circuit protection functional processes of hardware4 Over voltage, under voltage, temperature and overload protection function processing of software5 Accurate SOC calculation with automatic SOC learning function6 With UART communication7 RS485 communication with isolation8 Hardware discharge over-current, short-circuit protection function processingProduct Name Lifepo4 BMS 4S OEM/ODM Yes Custom Logo Yes Communication Available UART/RS485/CAN Consumption of running ≤30mA Circuit resistance <10mΩ Working Temperature -20 degree/+75 degree Consumption of sleep ≤600uA Packing Opp bag, then in a carton
