Jiabaida BMS

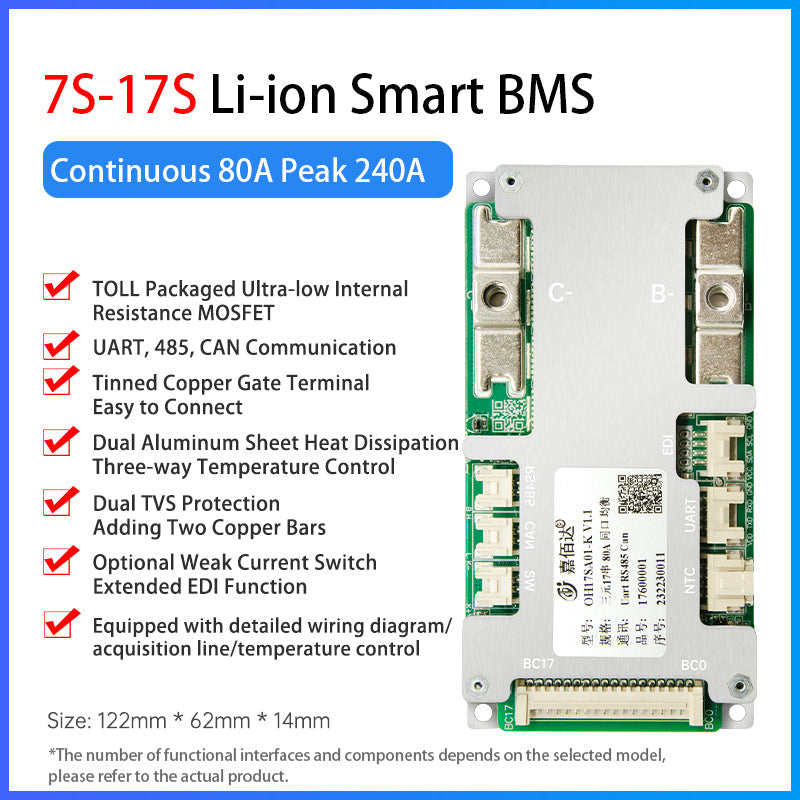

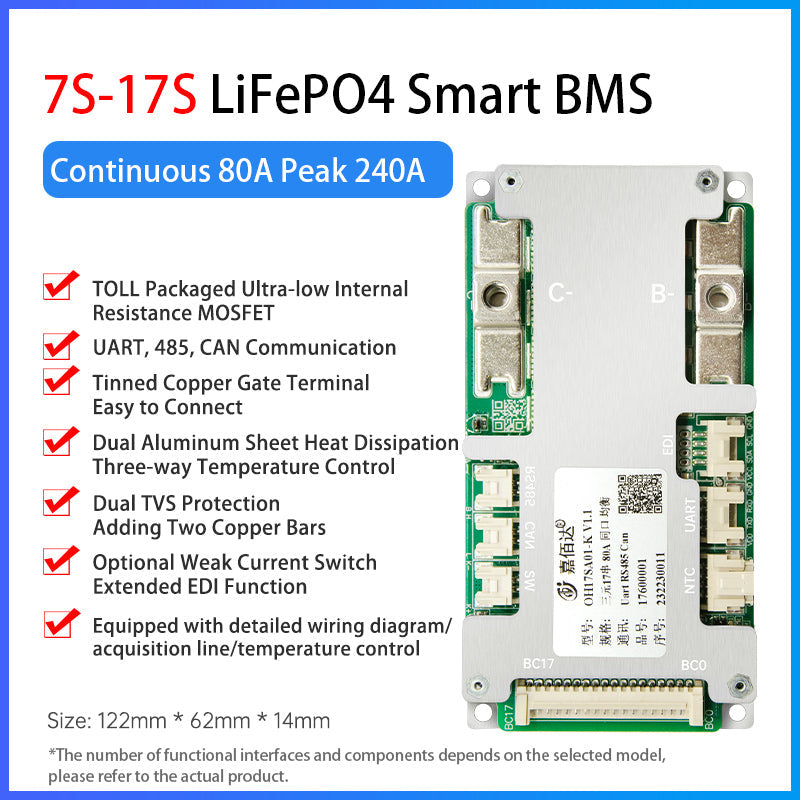

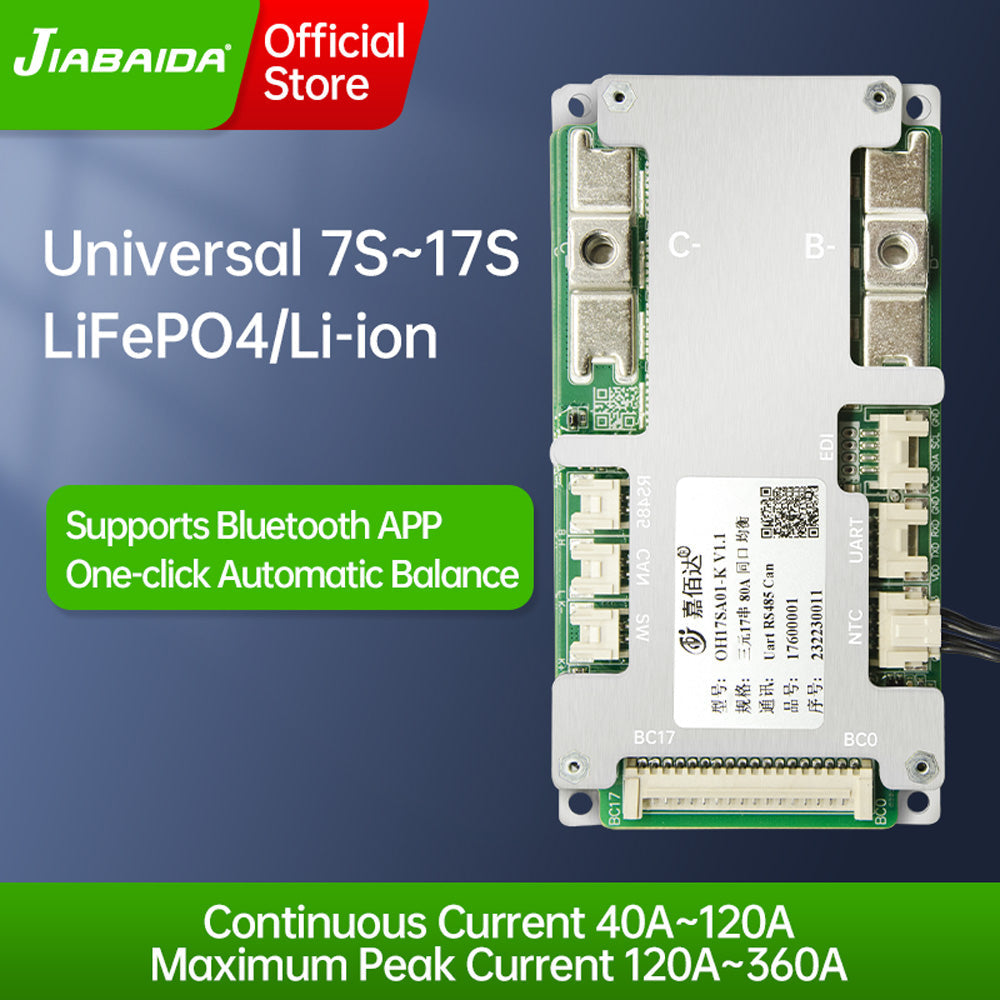

JBD Smart BMS 7-17S 40A 60A 80A 100A 120A for Lithium Battery with UART RS485 CAN Function Auotmatically Identify String Compatible

Name: JBD Smart BMS 7-17S 40A 60A 80A 100A 120A for Lithium Battery with UART RS485 CAN Function Auotmatically Identify String Compatible
Brand: Jiabaida BMS
SKU: JBD-OH17SA01-L17S-40A-40A-B-U-R-C-K
Price: 78.9 USD
Availability: InStock

$78.90 USD

Sale Sold out

Shipping calculated at checkout.

Specification 7-17S 3.2V 40A UART/Bluetooth+Balance+CANBUS+RS485 LiFePO4 7-17S 3.2V 60A UART/Bluetooth+Balance+CANBUS+RS485 LiFePO4 7-17S 3.2V 80A UART/Bluetooth+Balance+CANBUS+RS485 LiFePO4 7-17S 3.2V 100A UART/Bluetooth+Balance+CANBUS+RS485 LiFePO4 7-17S 3.7V 40A UART/Bluetooth+Balance+CANBUS+RS485 Li-ion 7-17S 3.7V 60A UART/Bluetooth+Balance+CANBUS+RS485 Li-ion 7-17S 3.7V 80A UART/Bluetooth+Balance+CANBUS+RS485 Li-ion 7-17S 3.7V 100A UART/Bluetooth+Balance+CANBUS+RS485 Li-ion

Product variants

Quantity

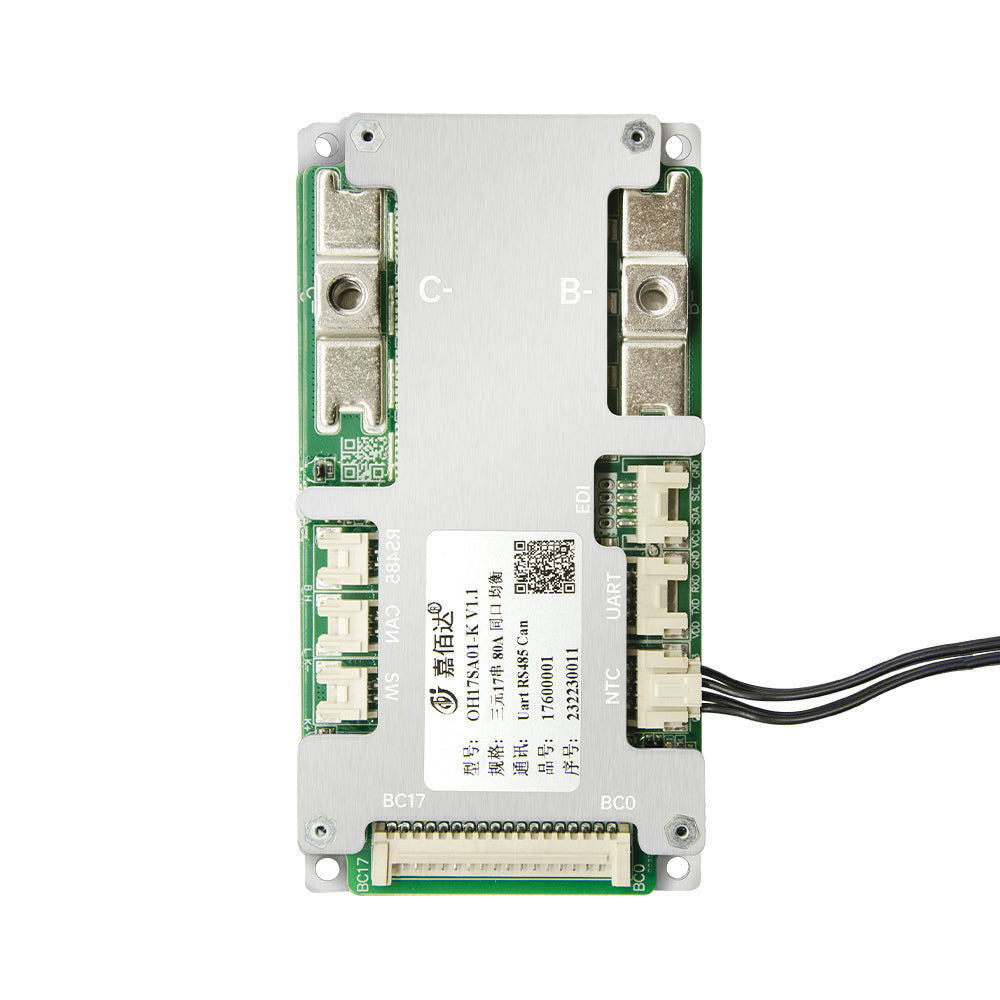

SMART BMS MODEL: JBD-OH17SA01

This is Jiabaida/JBD offical store on Shopify.

We have smart and hardware bms for lifepo4 and li-ion lithium battery and support to be customized. Please contact us if need more support and cooperation.

QUICK DETAILS

INTRODUCTION

JBD-OH17SA01 is a software BMS scheme specially designed for 7-17 strings of lithium battery packs.The product adopts architecture of front-end acquisition chip by O2 and MCU by HDSC.The part of protection parameters can be flexibly adjusted through the upper
computer according to customer needs

PARAMETERS

Cell specifications	7-17 strings of Lithium Iron Battery
Interface type	Charge and discharge are both at the same port
Charging voltage	3.6V*Number of strings
Cell voltage	2.30~3.75V
Continuous charging current	≤120A
Continuous discharging current)	≤120A
Consumption of running	≤20mA
Consumption of sleep	≤350uA(Including the average power consumption during one self-wake-up of 6S.)
Consumption of Shutdow	≤50uA
Sleep conditions	Delay 60±20s under no current \ communication \ protection state
Sleep Wakeup Conditions	Charging and discharging, communication, and switch wake-up.
Shutdown conditions	No communication Delay of 120 ± 40s when the voltage of a single section is lower than the under voltage value.
Circuit resistance)	≤10mR
Exit shutdown conditions	RS485\CAN communication\Charging exit shutdown mode
Operating temperature	-20℃~75℃
Size	122±2mm * 62±1mm * 14±2mm

Supplementary note:

Test should be at temperature25±2°C, and relative humidity 65±20% of surroundings.

FUNCTIONS

Overcharge protection and recovery
2. Over-discharge protection and recovery
3. Charging overcurrent protection and recovery
4. Discharge overcurrent protection and recovery
5. Temperature Protection and Recovery
6. Balance function
7. Capacity calculation
8. Sleep function
9. Communication
