Name: JBD Smart BMS 7-24S 40A 50A 60A 80A with Built-in Blutooth, Heating function,Supports 7-24 strings, with a maximum of 20 strings in LI-ION
Brand: Jiabaida BMS
SKU: JBD-DB24SA03-L24S-40A-40A-B-U
Price: 54.1 USD
Availability: InStock

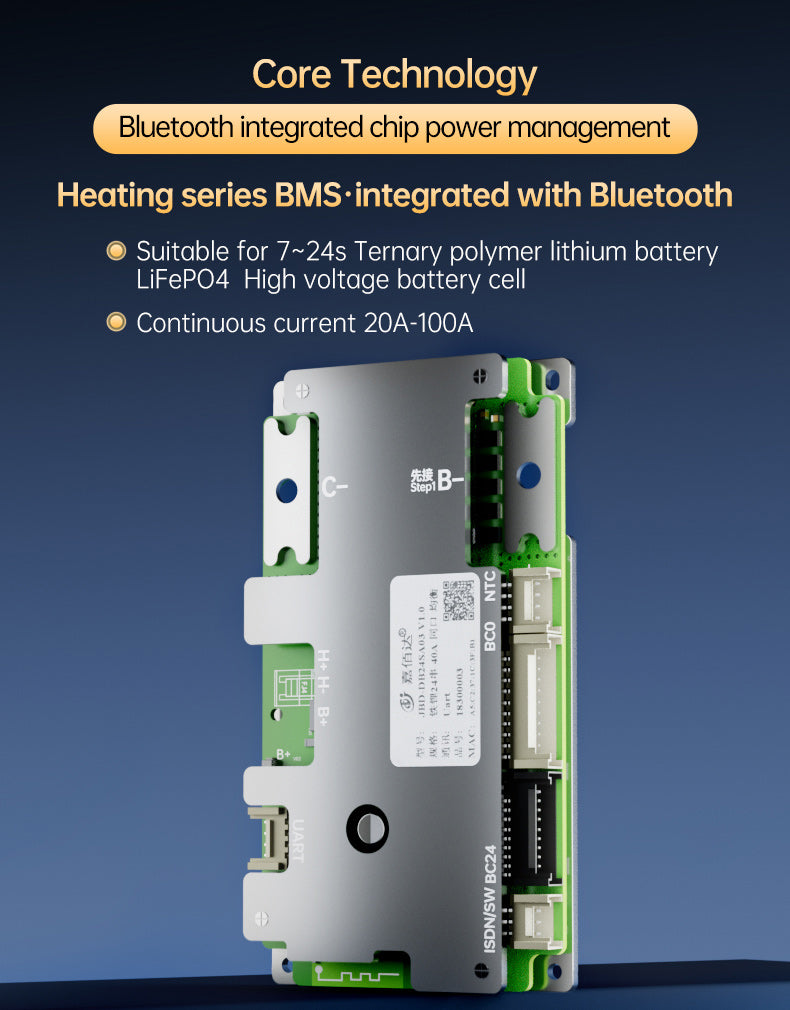

SMART BMS MODEL: JBD-DB24SA03

This is Jiabaida/JBD offical store on Shopify.

We have smart and hardware bms that for lifepo4 and li-ion lithium battery and support to be customized. Please contact us if need more support and cooperation.

QUICK DETAILS

INTRODUCTION

JBD-DB24SA03 is a software BMS scheme specially designed for 8-24 strings of lithium battery packs.The product adopts architecture of front-end acquisition chip by Deve chip and MCU by Telink. The part of protection parameters can be flexibly adjusted through the upper computer according to customer needs.

PARAMETERS

Cell specifications	7~24 strings of LiFePo4 battery
Interface type	Charge and discharge are both at the same port
Charging voltage	3.6V*Number of strings
Working voltage	2.30~3.75V
Continuous charging current	≤80A
Continuous discharging current)	≤80A
Consumption of running	≤10mA
Consumption of sleep	≤1mA(Including the average power consumption during one self-wake-up of 6S.)
Sleep conditions	Delay 60±20s under no current \ communication \ protection state (settable)
Circuit resistance)	≤10mΩ
Minimum detection current	Continuous current < 50A 0.5A±0.2A Continuous current: 50A-80A, 1A ±0.3A
Sleep wake-up current	≤1A±0.3A
Operating temperature	-20℃~75℃
Size	118±1mm * 70±1mm * 15±2mm
