Jiabaida BMS

JBD Smart BMS 8-24S 50A 60A 80A 100A 120A 150A 200A for Lithium Battery with Optional UART RS485 CAN Function Auotmatically Identify String Compatible with Buzzer LCD Screen for Indian AIS Standard

Name: JBD Smart BMS 8-24S 50A 60A 80A 100A 120A 150A 200A for Lithium Battery with Optional UART RS485 CAN Function Auotmatically Identify String Compatible with Buzzer LCD Screen for Indian AIS Standard
Brand: Jiabaida BMS
SKU: SP24S004-L24S-40A-40A-B-U-R-C
Price: 65 USD
Availability: InStock

$65.76 USD

Sale Sold out

Shipping calculated at checkout.

Specification 8-24S 3.2V 40A LiFePO4 8-24S 3.2V 50A LiFePO4 8-24S 3.2V 60A LiFePO4 8-24S 3.2V 80A LiFePO4 8-24S 3.2V 100A LiFePO4 8-24S 3.2V 120A LiFePO4 8-24S 3.2V 150A LiFePO4 8-24S 3.2V 200A LiFePO4

Function UART/Bluetooth+Balance+CANBUS+RS485

Product variants

Quantity

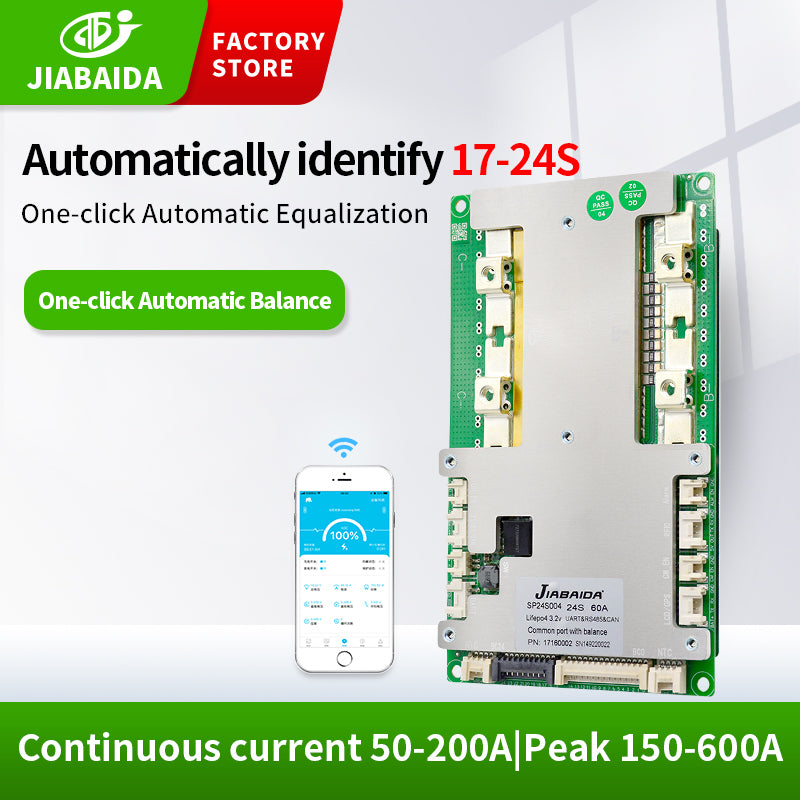

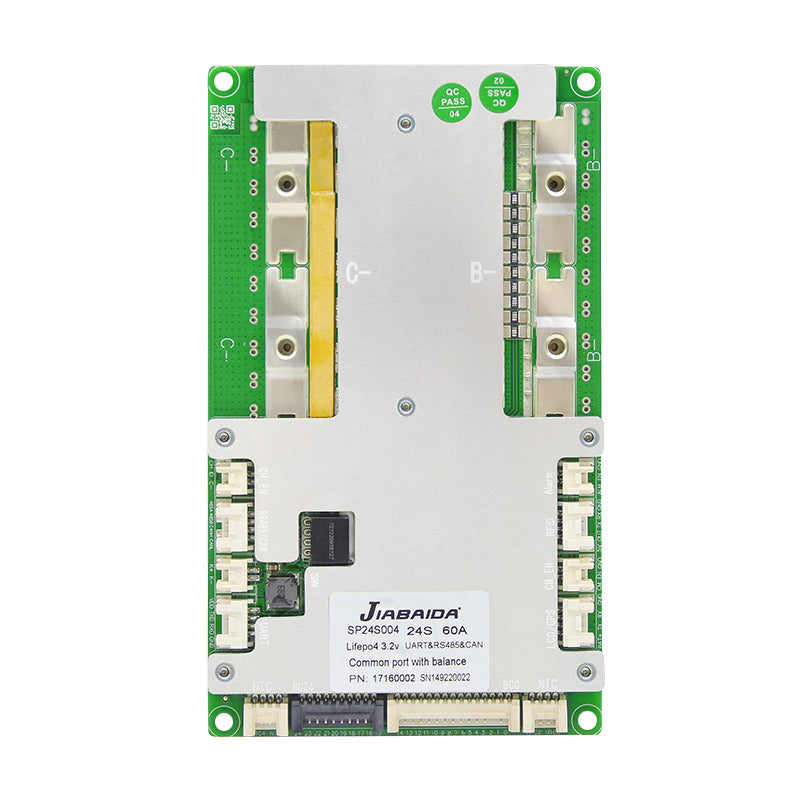

SMART BMS MODEL: JBD-SP24S004

This is Jiabaida/JBD offical store on Shopify.

We have smart and hardware bms for lifepo4 and li-ion lithium battery and support to be customized. Please contact us if need more support and cooperation.

QUICK DETAILS

INTRODUCTION

JBD-SP24S004 is a software protection board scheme specially designed for 8~24 strings of lithium battery packs. The product adopts architecture of front-end acquisition chip + MCU, and some parameters can be flexibly adjusted through the host computer according to customer needs.

PARAMETERS

Cell specifications	8~24 strings of Lithium Iron Battery
Interface type	Charge and discharge are both at the same port
Charging voltage	3.6V*Number of strings
Cell voltage	2.20~3.75V
Continuous charging current	50-200A
Continuous discharging current)	50-200A
Consumption of running	≤20mA
Consumption of sleep	≤300uA
Sleep conditions	Delay 40s-80s under no current \ communication \ protection state (settable)
Circuit resistance)	≤10mR
Operating temperature	-20℃~75℃
Size	170±2mm * 100±1mm * 13±2mm

Supplementary note:

Test should be at temperature25±2°C, and relative humidity 65±20% of surroundings.

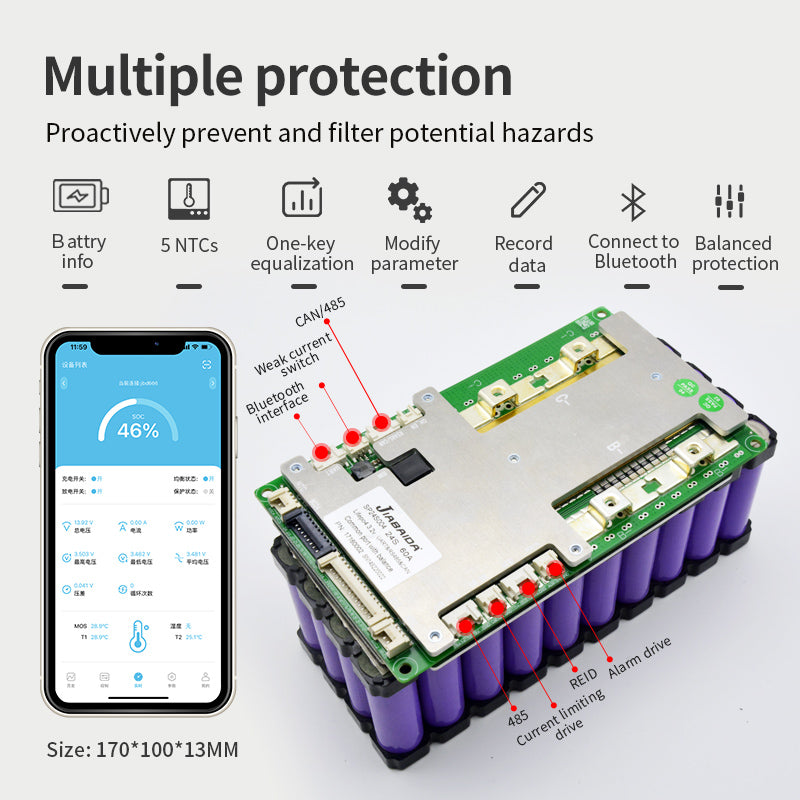

FUNCTIONS

1. Overcharge protection and recovery
2. Over-discharge protection and recovery
3. Charging overcurrent protection and recovery
4. Discharge overcurrent protection and recovery
5. Temperature Protection and Recovery
6. Balance function
7. Capacity calculation
8. Sleep function
9. Communication
