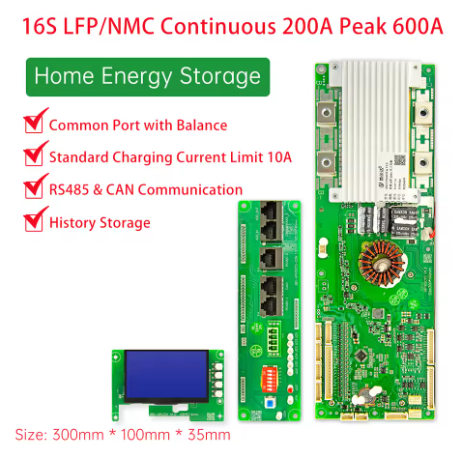

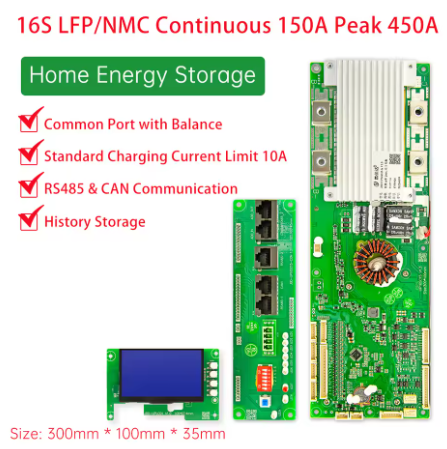

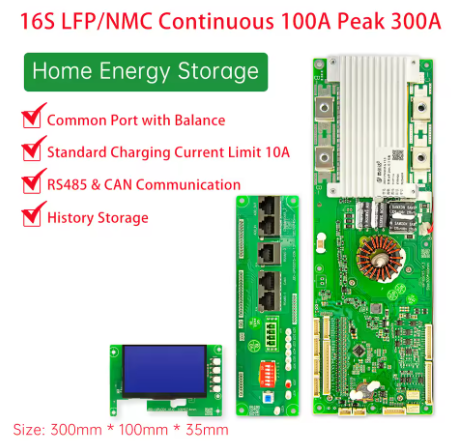

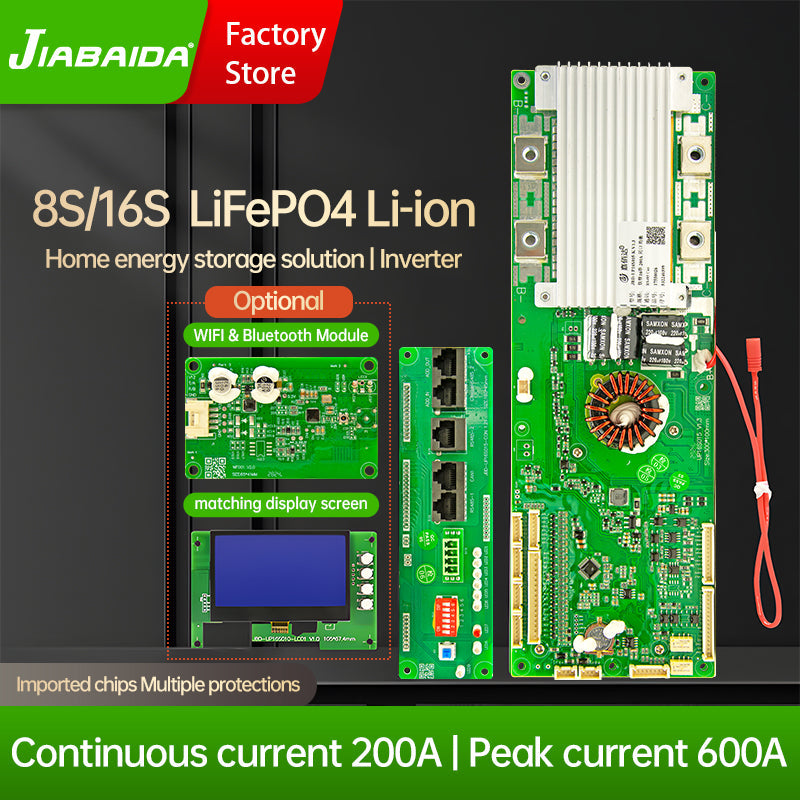

JBD Smart BMS 8S 16S 100A 150A 200A Communicant PCB with WIFI BLUETOOTH/UART/RS485/CAN Function for Inverters Parallel Connect Support Same Port Unique SOC Display
Couldn't load pickup availability
SMART BMS MODEL: JBD-UP16S015
This is Jiabaida/JBD offical store on Shopify.
We have smart and hardware bms for lifepo4 and li-ion lithium battery and support to be customized. Please contact us if need more support and cooperation.
QUICK DETAILS
INTRODUCTION

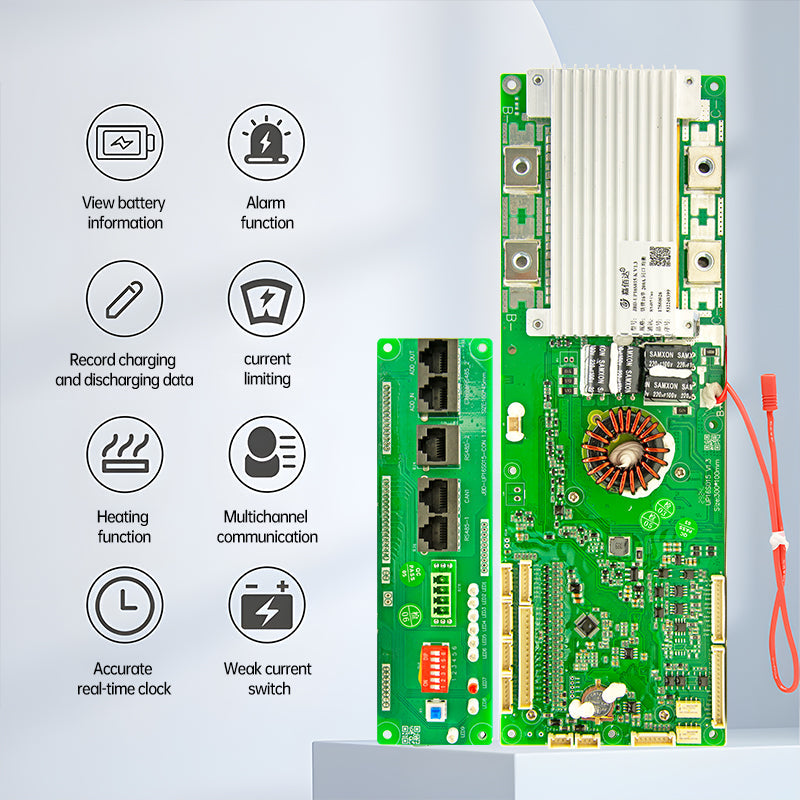

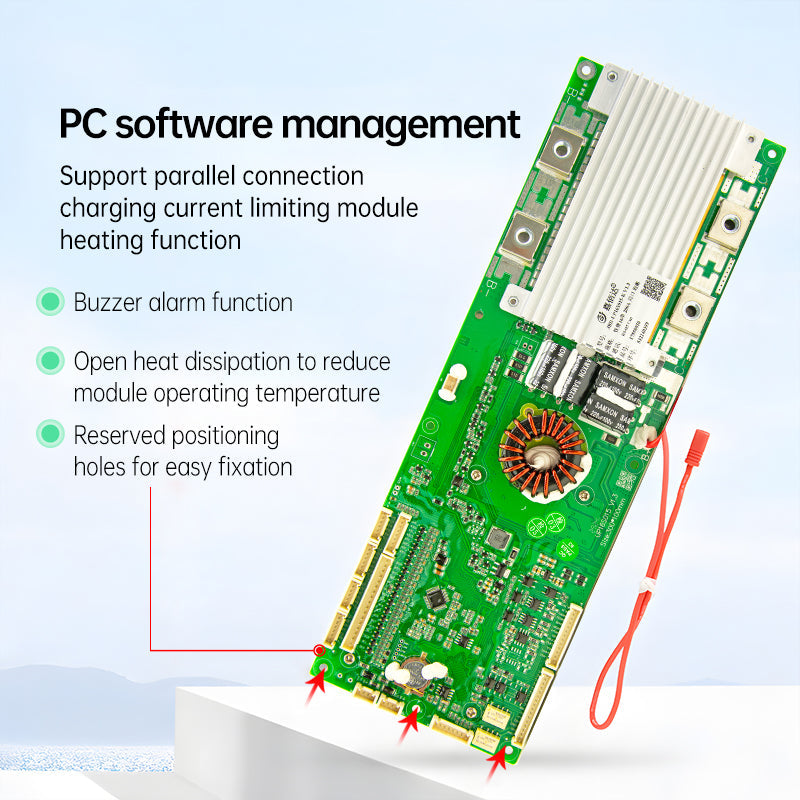

JBD-UP16S015 is a software board BMS solution specifically designed for 8-16 series lithium battery packs. The product adopts architecture of front-end acquisition chip + MCU, and some parameters can be flexibly adjusted through the host computer according to customer needs.
PARAMETERS
| Cell specifications | 8~16 strings of Lithium Iron Battery |
| Interface type | Charge and discharge are both at the same port |
| Charging voltage | 3.6V*Number of strings |
| Cell voltage |
2.7~3.65V |
| Continuous charging current |
100A 150A 200A |
| Continuous discharging current) |
100A 150A 200A |
| Consumption of running |
≤25mA |
| Consumption of sleep | ≤150uA |
| Sleep conditions | Delay 65000s under no current \ communication \ protection state (settable) |
| Circuit resistance) | ≤10mR |
| Operating temperature | -20℃~75℃ |
| Size | 300±1mm * 100±1mm * 26±2mm |
Supplementary note:
FUNCTIONS
1. Overcharge protection and recovery
2. Over-discharge protection and recovery
3. Charging overcurrent protection and recovery
4. Discharge overcurrent protection and recovery
5. Temperature Protection and Recovery
6. Balance function
7. Capacity calculation
8. Sleep function

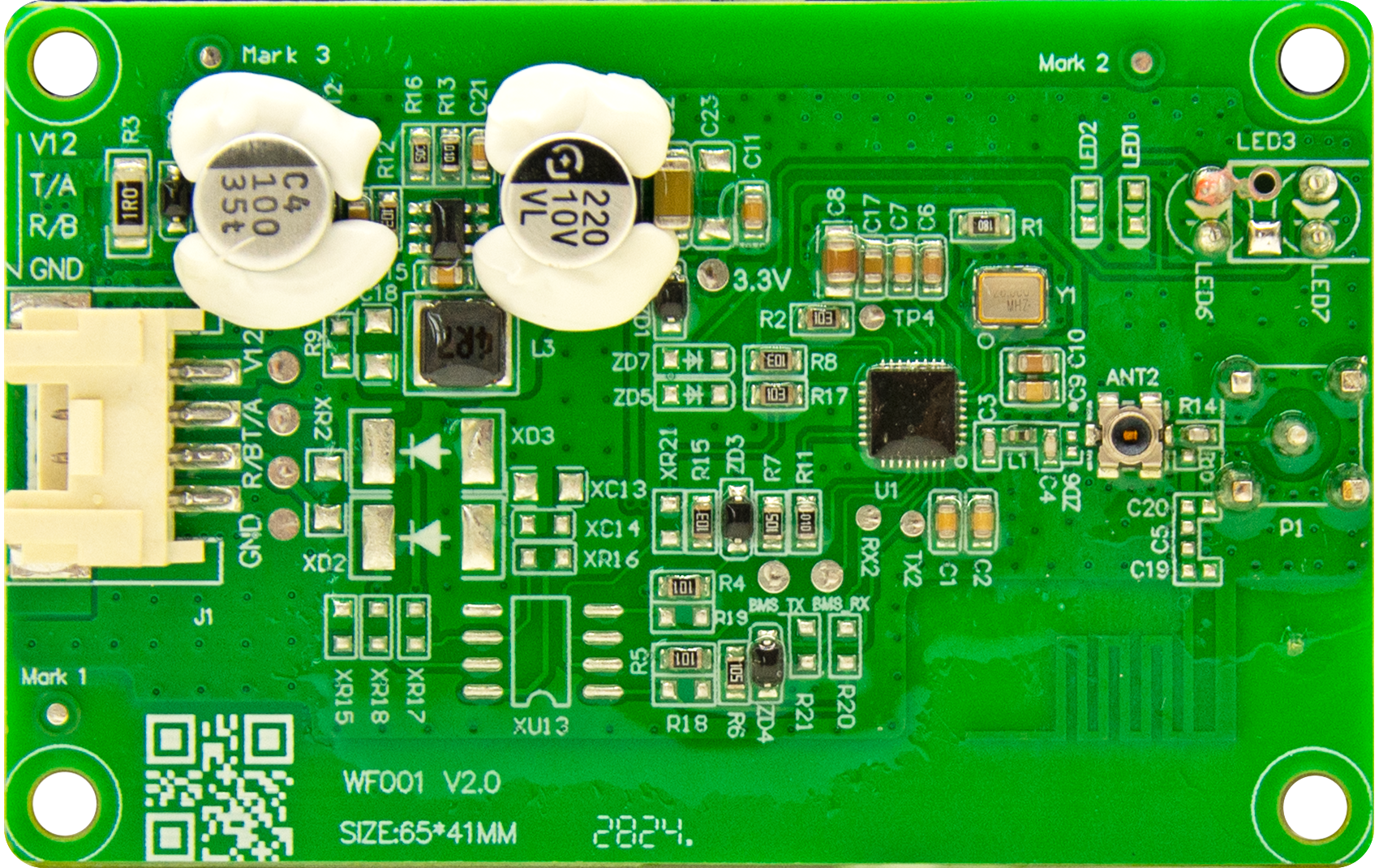

9. Communication
TECHNICAL FILES
APPS:
Xiangxiang APP for ANDROID & IOS:
https://cdn.shopify.com/s/files/1/0606/5199/5298/files/xiaoxiang3.1.1026.zip?v=1662621036
RS485/UART SW for WINDOWS TOOL:
https://cdn.shopify.com/s/files/1/0606/5199/5298/files/JBDTools_V2.9-20210524.rar?v=1662621110
DATASHEET:
To be confirmed
WIRING DIAGRAM:
To be confirmed
