Jiabaida BMS

JBD Smart BMS 8S 16S 100A 150A 200A Communicant PCB with WIFI BLUETOOTH/RS485/RS232/CAN Function for Inverters Parallel Connect Support Same Port Unique SOC Display

Name: JBD Smart BMS 8S 16S 100A 150A 200A Communicant PCB with WIFI BLUETOOTH/RS485/RS232/CAN Function for Inverters Parallel Connect Support Same Port Unique SOC Display
Brand: Jiabaida BMS
SKU: JBD-UP16S019-L16S-100A-100A-B-K-R-C
Price: 145.3 USD
Availability: InStock

$145.30 USD

Sale Sold out

Shipping calculated at checkout.

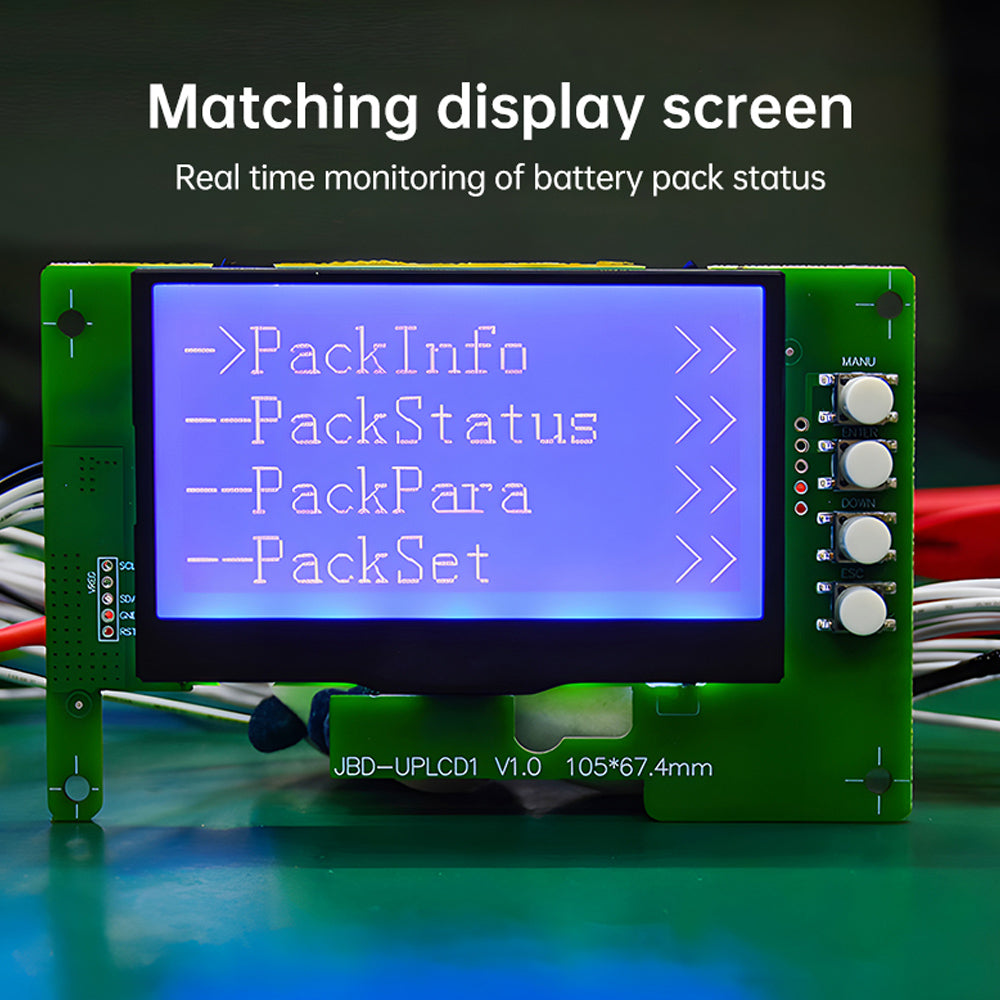

Specification LFP 16S 48V 100A Balance+UART+RS485+CAN LFP 16S 48V 150A Blance+UART+RS485+CAN LFP 16S 48V 200A Balance+UART+RS485+CAN LCD For UP RS485 RJ45 Communication Wire

Product variants

Quantity

SMART BMS MODEL: JBD-UP16S019

This is Jiabaida/JBD offical store on Shopify.

We have smart and hardware bms for lifepo4 and li-ion lithium battery and support to be customized. Please contact us if need more support and cooperation.

QUICK DETAILS

INTRODUCTION

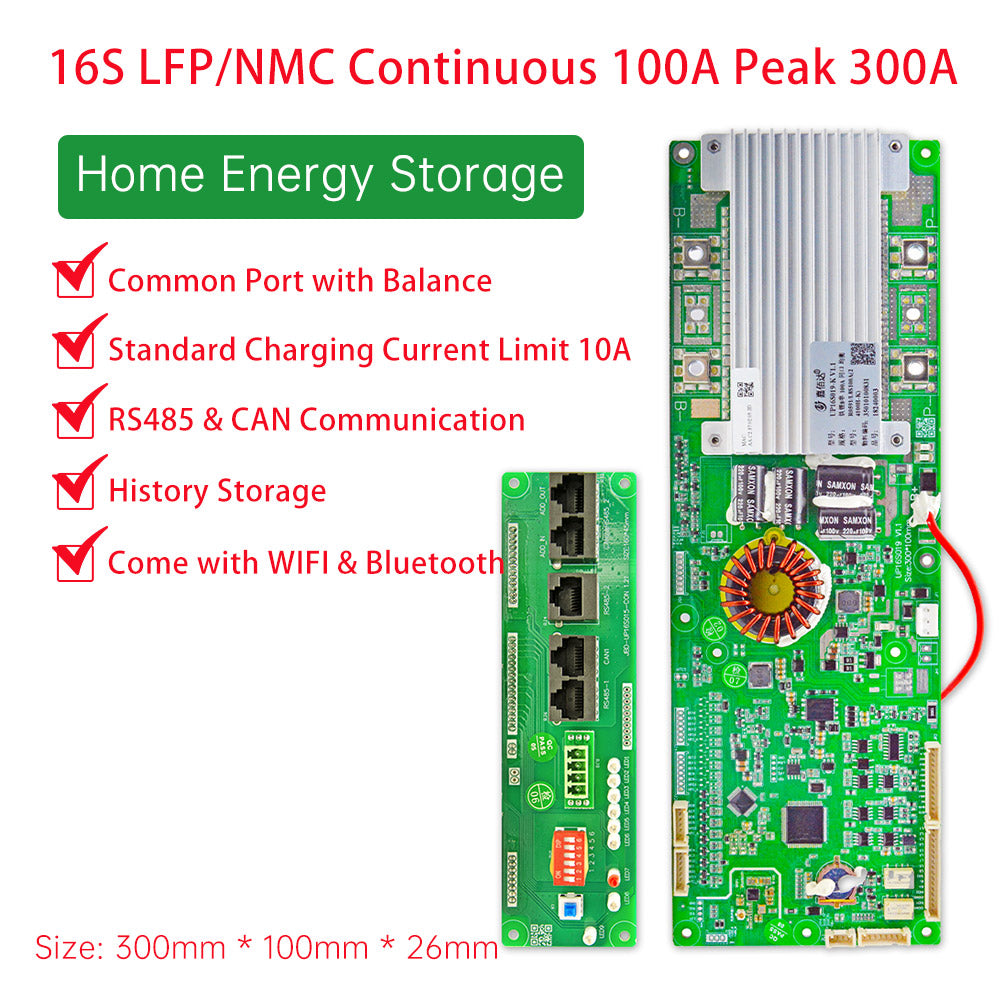

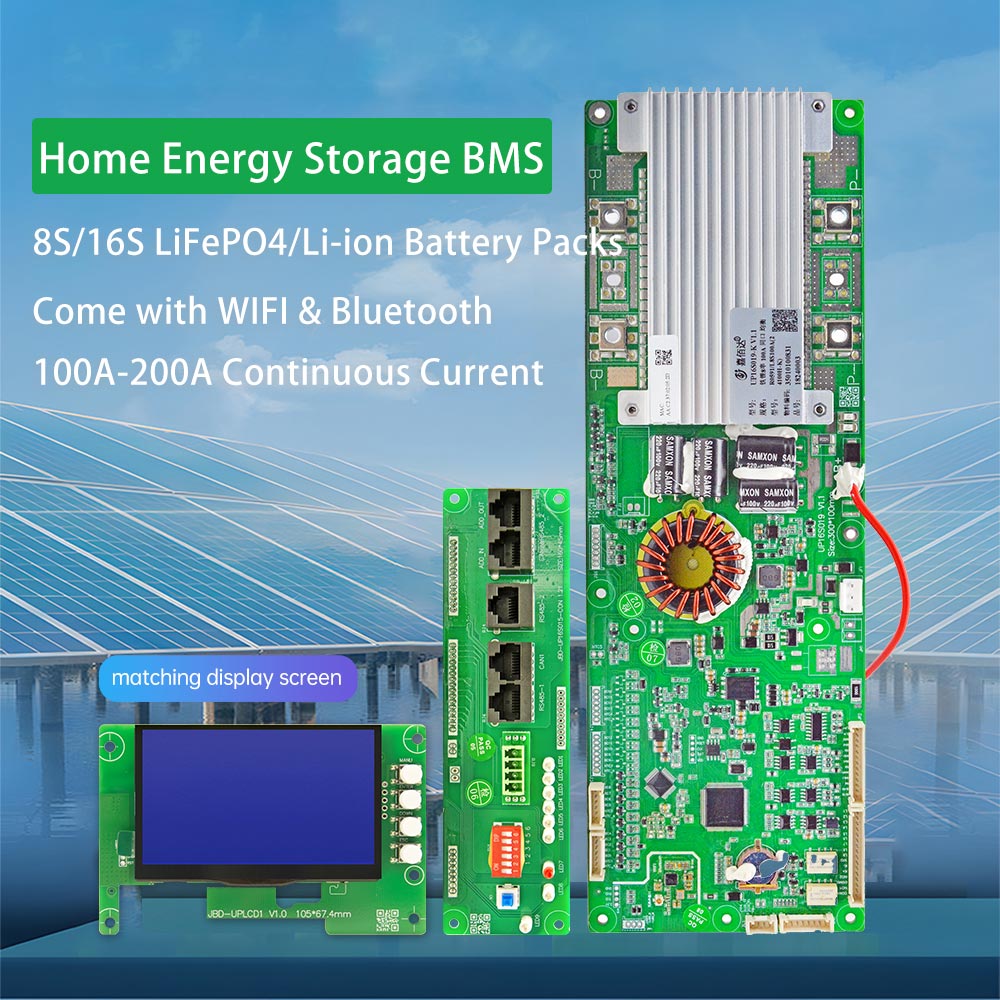

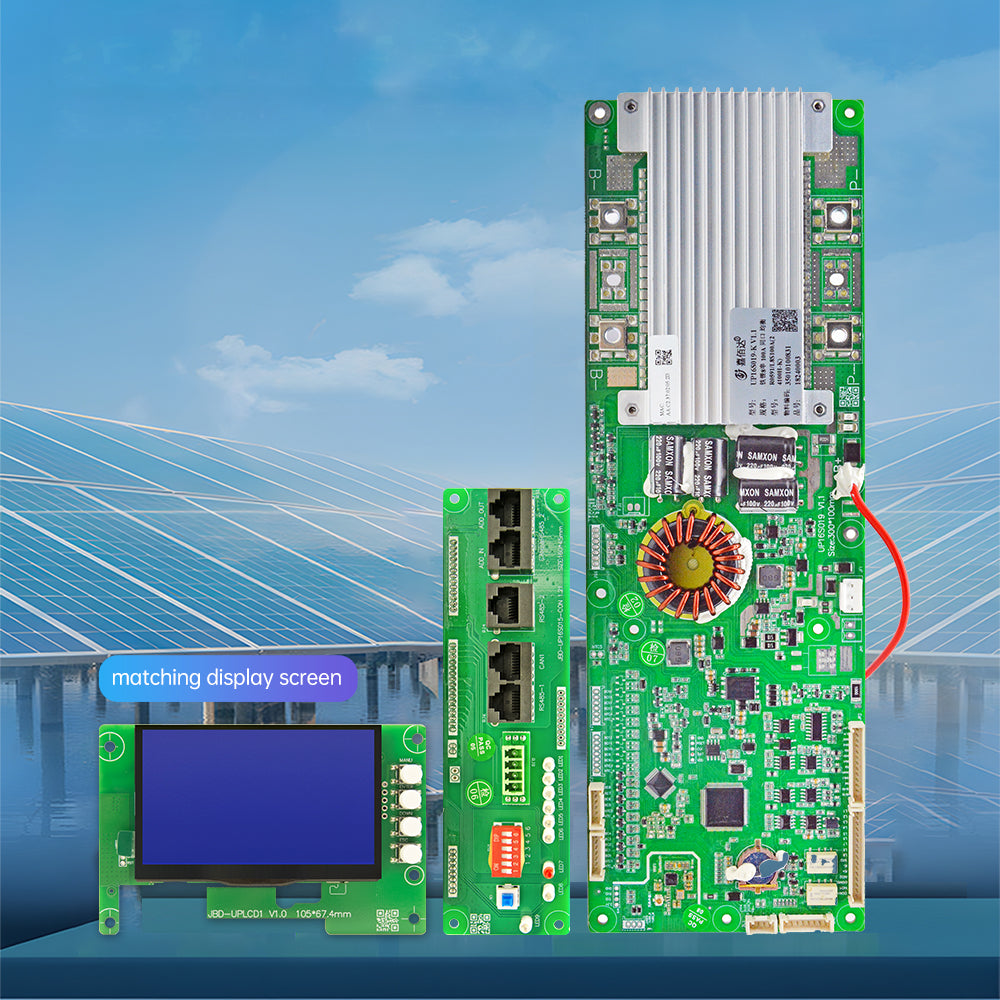

JBD-UP16S015 is a software board BMS solution specifically designed for 8-16 series lithium battery packs. The product adopts architecture of front-end acquisition chip + MCU, and some parameters can be flexibly adjusted through the host computer according to customer needs.

PARAMETERS

Cell specifications	8~16 strings of Lifepo4 Battery
Interface type	Charge and discharge are both at the same port
Charging voltage	3.65V*Number of strings
Continuous charging current	100A 150A 200A
Continuous discharging current)	100A 150A 200A
Consumption of running	16S≤30mA
Consumption of sleep Mode	≤200uA
Consumption of power down Mode	≤20uA
condition of exit power down Mode	Connect the charger or Key press
Circuit resistance)	≤20mR
Operating temperature	-20℃~75℃
Size	100A:300±1mm * 100±1mm * 20±2mm 150A&200A:300±1mm * 100±1mm * 28±2mm

Supplementary note:

Note: Test should be at temperature25±2°C, and relative humidity 65±20% of surroundings.

FUNCTIONS

1. Overcharge protection and recovery
2. Over-discharge protection and recovery
3. Charging overcurrent protection and recovery
4. Discharge overcurrent protection and recovery
5. Temperature Protection and Recovery
6. Balance function
7. Capacity calculation
8. Sleep function
9. Communication
