Jiabaida BMS

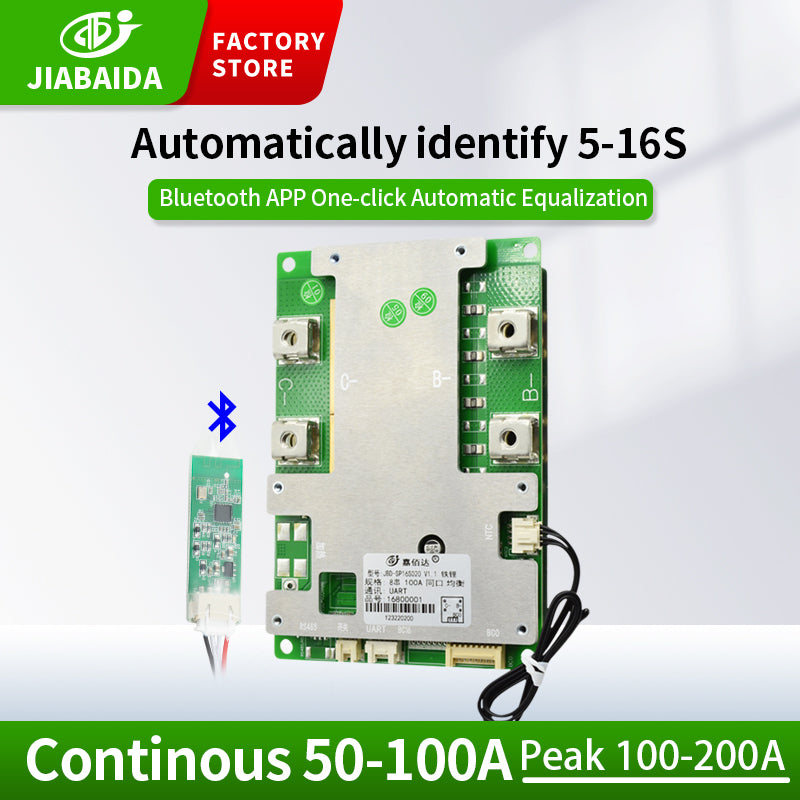

JBD Smart BMS 8S 16S 6~10S 60A 80A 100A Lifepo4 Li-ion for Lithium Iron Battery Pcb with UART RS485 Function/BT Module with Balance Wires

$59.64 USD
$63.76 USD $59.64 USD
Sale Sold out
Shipping calculated at checkout.
Specifications
Functions

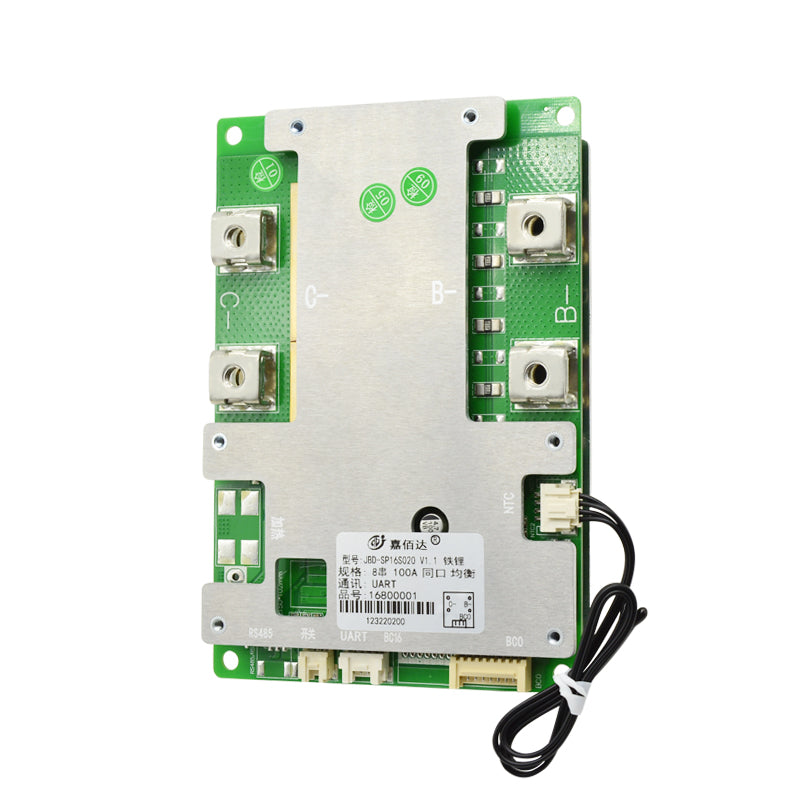

SMART BMS MODEL: SP16S020

This is Jiabaida/JBD offical store on Shopify. As a bms supplier, we always pursue good quality and development of the protection board. We bms are well received in many countries and regions. We have smart and hardware bms that for lifepo4 and li-ion lithium battery and support to be customized. Please contact us if need more support and cooperation.

Quick Detail
Model No. : SP16S020 Type: BMS PCBA
Place of Origin:  China Brand Name:  JBD jiabaida
Copper Thickness: 1 oz Product Name: BMS 8S 16S

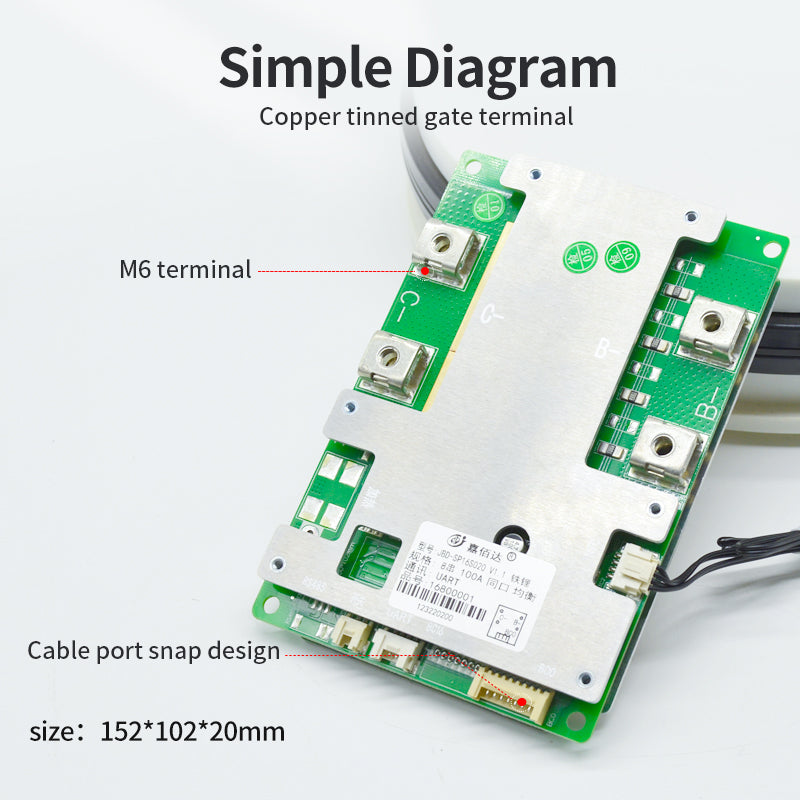

Product Size:  150*102*20mm
 Customized:  Supported
String:  6~16S Shipping Time: 7-20 working day
Testing Service: 100% Testing Usage: Li Ion Lipo B-Pack
With Uart: Yes Optional Functions: RS485
Voltage: 24V 48V  Application:  Electronic Products

Basic Parameters

Cell specifications

8 strings of iron lithium batteries

Interface type

Charge and discharge are both at the same port

charging voltage

28.4V

Cell voltage range

19.2~30V

Continuous charging current

100A

Continuous discharging current

100A

Consumption of running

≤20mA

Consumption of sleep

≤200uA

Sleep conditions

Delay 60s under no current \ communication \ protection state(default)

Circuit resistance

≤10mR

Operating temperature

-30℃~75℃

Packaging & Delivery

Selling Units: Single item
Single package size: 13X8X9cm
Single gross weight: 0.800kg
Package Type: Manufactuers will upgrade the packaging sometimes,please refer to the actual object received.
Package Content : 1* BMS *Balance wires* Bluetooth Module
Note: UART/RS485 communication box should be purchased seperately
Picture Example:
