Jiabaida BMS

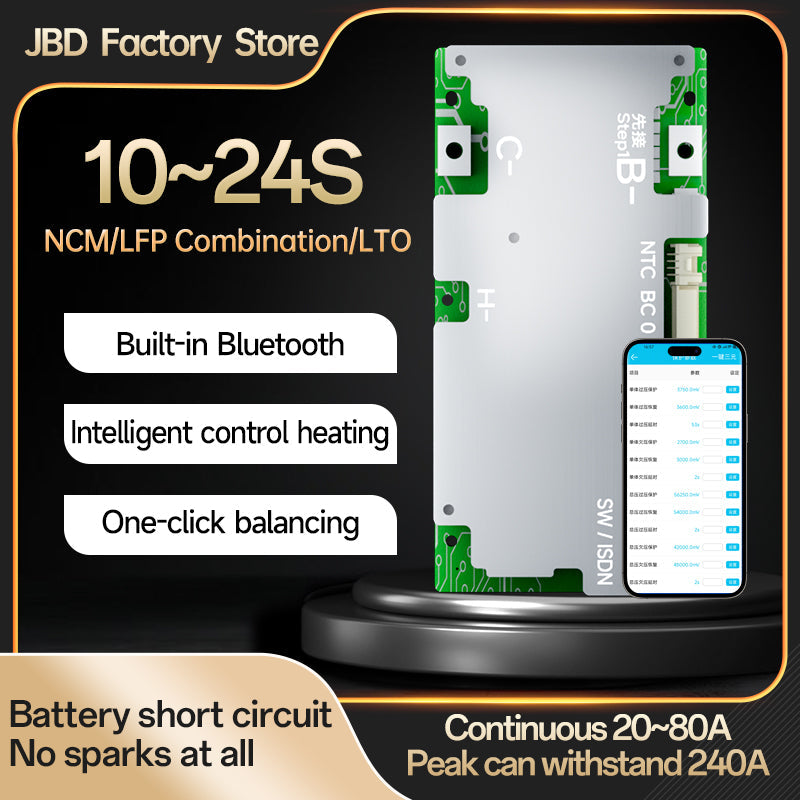

JBD Smart BMS10-24S 30A 40A 50A 60A 80A with Built-in Blutooth, Supports 10-24 strings, with a maximum of 20 strings in LI-ION

$31.20 USD
$31.20 USD
Sale Sold out
Shipping calculated at checkout.
current

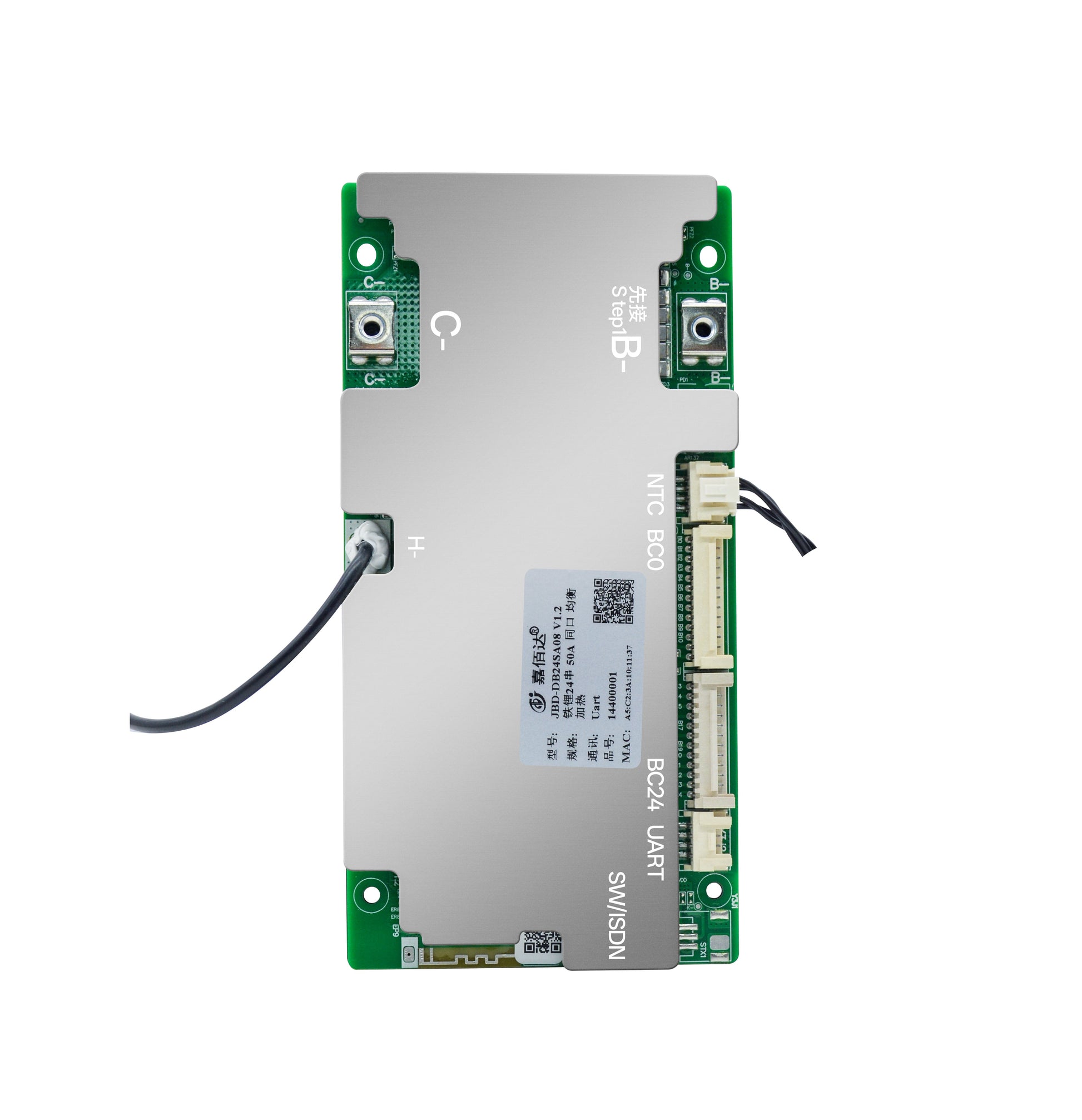

SMART BMS MODEL: JBD-DB24SA08

This is Jiabaida/JBD offical store on Shopify.

We have smart and hardware bms that for lifepo4 and li-ion lithium battery and support to be customized. Please contact us if need more support and cooperation.

QUICK DETAILS

INTRODUCTION

JBD-DB24SA08 is a software BMS scheme specially designed for 10-24 strings of lithium battery packs.The product adopts architecture of front-end acquisition chip by Amagic Tech and MCU by Telink. The part of protection parameters can be flexibly adjusted through the upper computer according to customer needs.

PARAMETERS

Cell specifications  10~24 strings of LiFePo4 battery
Interface type Charge and discharge are both at the same port
Charging voltage 3.6V*Number of strings
Working voltage
 2.30~3.75V
Continuous charging
current		 ≤80A
Continuous discharging
current)		 ≤80A
Consumption of
running		 ≤5mA
Consumption of sleep ≤1mA(Including the average power consumption during one self-wake-up of 6S.)
Sleep conditions Delay  60±20s under no current \ communication \ protection
state (settable)
Circuit resistance) ≤10mΩ
Minimum detection current Discharge ≥5mA, charge ≥300mA
Sleep wake-up current ≥0.3A
Operating temperature -20℃~75℃
Size 160±1mm * 80±1mm * 10±2mm

Supplementary note:

Test should be at temperature25±2°C, and relative humidity 65±20% of surroundings.
CAUTION
非隔离 UART 口不能用于给负载或者充电器通讯
The UART interface (non-isolated) can not be supported to communicate with chargers or loads.
保护板支持无限防打火功能，但是当充放电结束后，需要等待 30 秒后重新启动防打火功能
After the charging and discharging are completed, it is necessary to wait for 30 seconds, The connection load will
not generate spark discharge

FUNCTIONS

  1. Overcharge protection and recovery
    2. Over-discharge protection and recovery
    3. Charging overcurrent protection and recovery
    4. Discharge overcurrent protection and recovery
    5. Temperature Protection and Recovery
    6. Balance function
    7. Capacity calculation
    8. Sleep function
